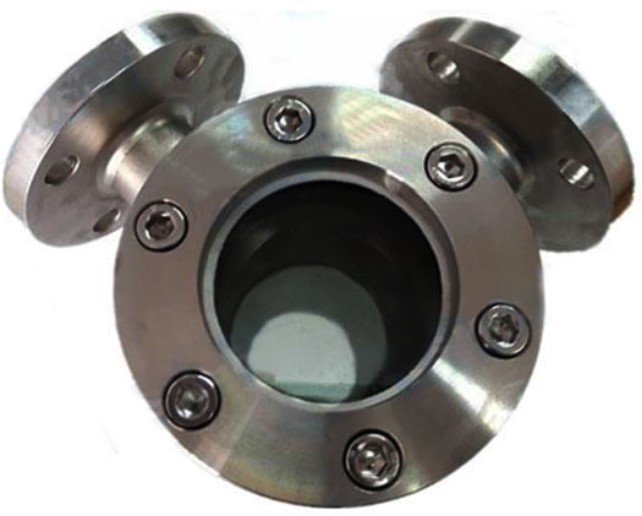

Angle Sight Glass

is committed to helping customers to monitor and verify the flowing mediums such as petroleum products, liquefied gases, solvents or hazardous and corrosive chemicals and liquids. Monitoring, Sensing and Revealing the fluids in operation, to help you keep them under your control for safety and trouble shooting in economical ways.

Specification :
* Size DN15 ~ DN500 (1/2" to 20")
* Body material SS304/SS316/SS316L/Carbon Steel(WCB)
* Sealing gasket PTFE/NBR/Viton/Graphite
* Sight glass Tempered/Borosilicate/Quartz/ Aluminosilicate Glass
* Connection method ANSI 150/300, JIS 5K/10K, DIN, GB Flange
* Max working temperature 100 degC/ 212 degF for plastic impeller & NBR/Viton gasket and 200 degC/392 degF for PTFE impeller & gasket
* Max. operating pressure 1.6MPA/16bar tempered glass ( up to 5.0 MPa Customize)

​For more detail information please Contact Us
